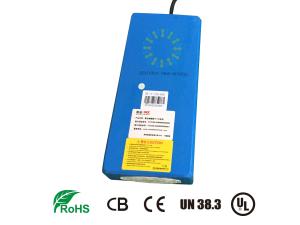

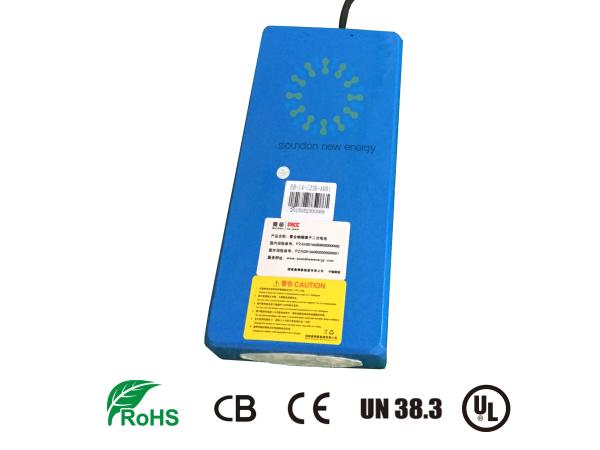

Good Safety and Longer Cylife Lifepo4 12V 30Ah ESS Battery For solar Street Light
Specification :
| Item |
Parameter |
Remark |
| Normal Voltage |
12.8V |
|
| Normal Capacity |
30Ah |
|
| Shipment voltage |
>13V |
|
| Charge Voltage |
14.6V±0.06V |
|
| Impedance |
30mΩ(Max) |
|
| Battery pack Size |
175*166*126mm |
including the protection plate size |
| Charging Mode |
C.C/C.V. |
Constant Current
/Constant Voltage
|
| Charging Method |
Standard Charging 0.2C5A |
Charging Current 0.2C5A |
| Charging Time |
Standard Charging |
4-5Hrs |
|
|
End of Discharge
Voltage
|
8.4V |
|
| Charge condition |
Max current :10A |
|
| discharge condition |
Continuous current : 10A |
|
| Peak current (<5S): 15A |
|
| Peak current (<3S): 10A |
|
| Operating Temperature |
Charging |
0~45℃ |
|
| Discharging |
-10~45℃ |
| Storage Temperature |
-10℃-45℃
Recommend(25±5℃)
|
Storage capacity should be 40%~50% full charge capacity |
| Cycle Life |
2000 cycle |
Charge 0.5C,discharge :1C |
Company profile
1. Fouded in 2011, located in Hunan Province, Xiangtan city in China, Soundon has several experience in researching, developing, producing, selling electric vehicle battery and energy storage battery
2. The products passed CE, CB, RoHS, TS16949, ISO9001, ISO4001 certificates.
3. Soundon industrial park covering an area of 0.2 million square meters. designed capacity of lithium battery reach 2160MWH, high quality lithium battery cathode material ( Li-NiCoMn,Li-Mn)up to 5,000 tons.
Battery description:
1, stable performance : The iron-lithium battery is more safety and stable than the VRLA. can stand the explode and burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
2, Environmental friendly: comply with RoHS, it’s doesn’t polluted the environmental
3, Small in Volume and Light in Weight: The iron-lithium battery is around 1/2 the volume and 1/3 the weight of the VRLA battery.
4, Powerful: can able to discharge with 20C at 65. C max.
5, Steady Performance: High discharge rate : 1C, continuous discharge: 3C pulse for normal cells and 20 C for special design. Low self-discharge rate, less than 3% monthly.
Applications:
Large-scale electric vehicles: electric bus, electric car, E-Tour Car e-wheelchair; Solar and wind power generation energy storage devices, Telecom base Station
