100ah 48 volt lifepo4 battery / Deep Cycle Battery For Solar Energy System , Smart Micro Grid With RS232 / RS485

Brand Name : Soundon

Model Number : SDDC-ES-16-48100

Certification : ROHS ,MSDS,CE ,UN38.3

Place of Origin : China

MOQ : 1

Price : Negotiation

Supply Ability : 500 Units / week

Delivery Time : 7-10 days for sample , 20-25days for mass

Packaging Details : carton box for inner package , wooden box for outer package

Capacity ,voltage : 48V100AH

dimension : 400*470*250mm

Weight : <100Kg

Components : Lifepo4 prismatic cells

Case material : Hard Steel case with IP 65

Warranty : 5 years

Application : Telecom power, backup power,solar energy system

Contact Now

Longer Warranty 48V100Ah Solar Energy Storage Batteries Used For Telecom Base station

battery Cell:

Model :SEPFe80125256P
Rated Voltage :3.2V
Rated Capacity:20Ah
Standard Discharge Current: 0.5C
Discharge Cut off Voltage: 2.5V
Min Capacity:20Ah
Charge off Voltage :3.65V±0.03V
Impedance ≤2.5mΩ

Battery pack

Compound mode :5 Parallel16 Series
Rated Capacity:100Ah
Standard Discharge Current: 0.5C
Discharge Cut off Voltage: 43.2V
Min Capacity:100Ah
Rated Voltage :51.2V
Working voltage:43.2~58.4V

charge conditions
Standard charge current:0.2C

Rapid Charge current:1C
Instantaneous Charge current:3C


Discharge conditions

Standard discharge current:0.5C

Rapid discharge current:1C
Instantaneous discharge current;3C
Impedance ≤30mΩ


Working Temperature Charge (0~40)℃
60±25% humidity
Discharge (-20~60)℃
Cycle life ≥2000times Standard Charge and Discharge at 0.2C
Communication : RS232/RS485
Storage Temperature :-5℃~35℃
Relative humidity≤90%

Description:

The battery pack box is using the 1.5mm high strength cold-roll steel to made of, the box surface with electrophoresis treatment, Waterproof and Dustproof grade : IP65,the total weight of battery pack system ≤100Kg , overall size Max. 400*470*250mm

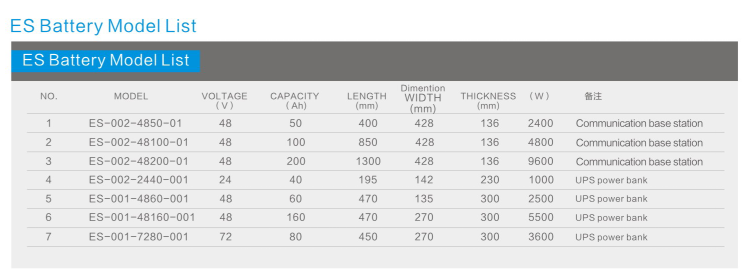

Energy Storage battery list :

100ah 48 volt lifepo4 battery / Deep Cycle Battery For Solar Energy System , Smart Micro Grid With RS232 / RS485

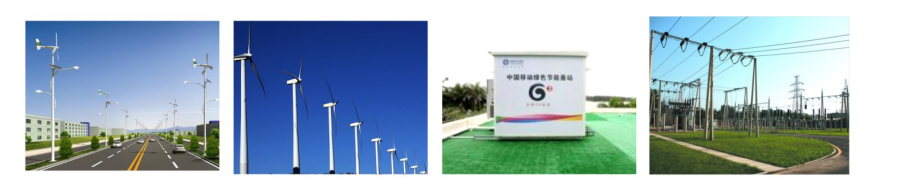

Application :
Energy Storage: solar , wind complementary stored energy streetlights, energy storage systems, household energy storage. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc

100ah 48 volt lifepo4 battery / Deep Cycle Battery For Solar Energy System , Smart Micro Grid With RS232 / RS485

100ah 48 volt lifepo4 battery / Deep Cycle Battery For Solar Energy System , Smart Micro Grid With RS232 / RS485
